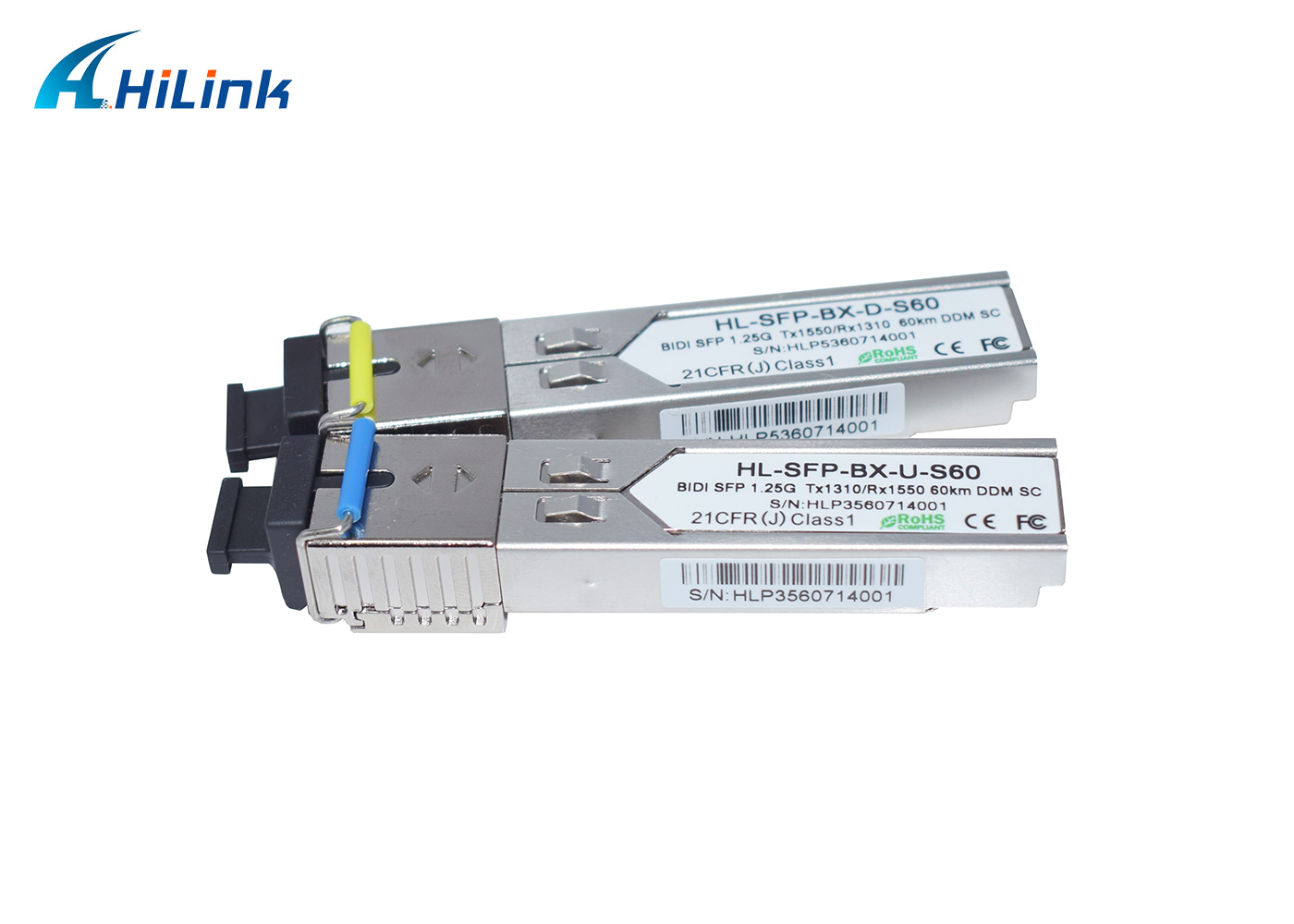

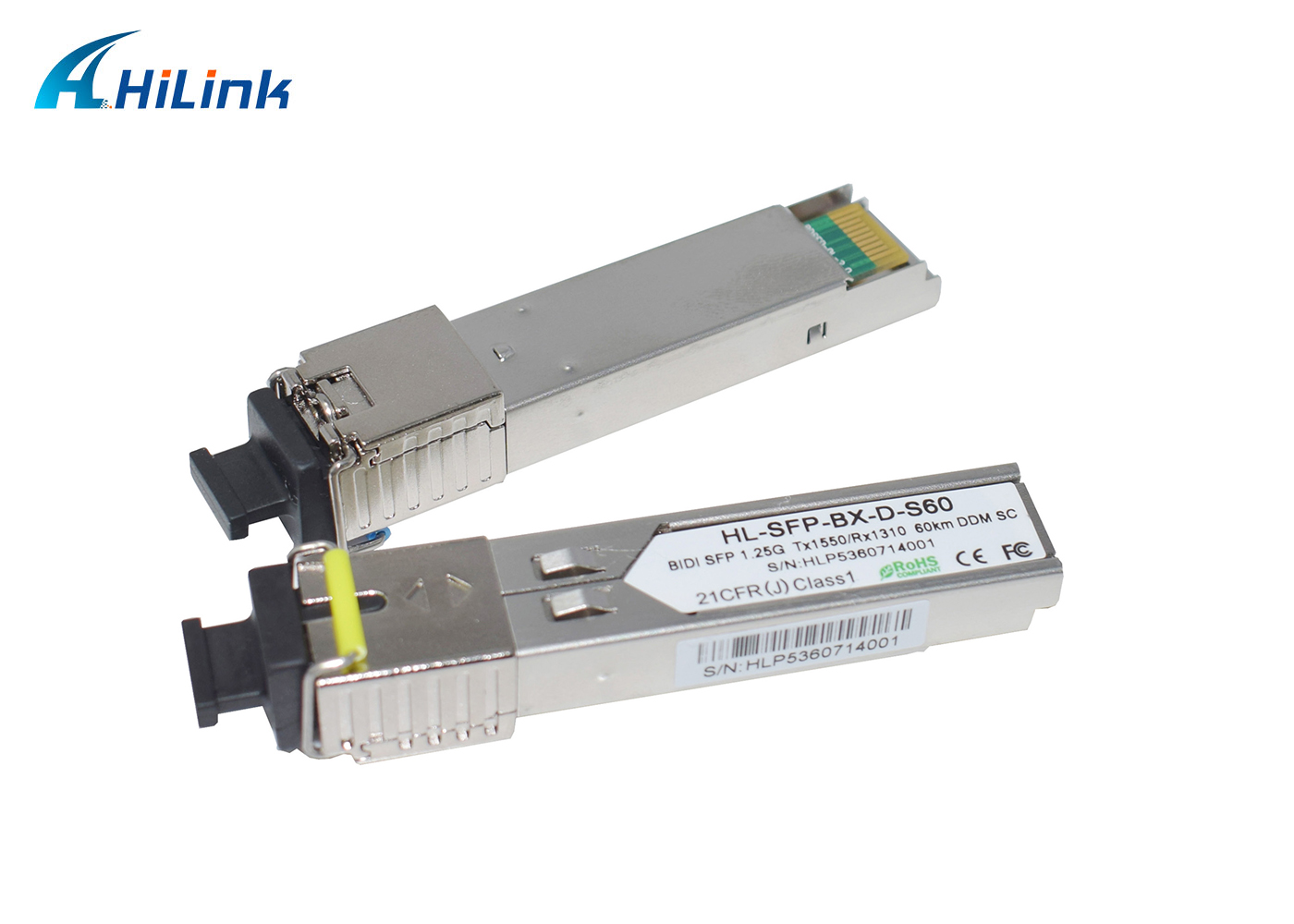

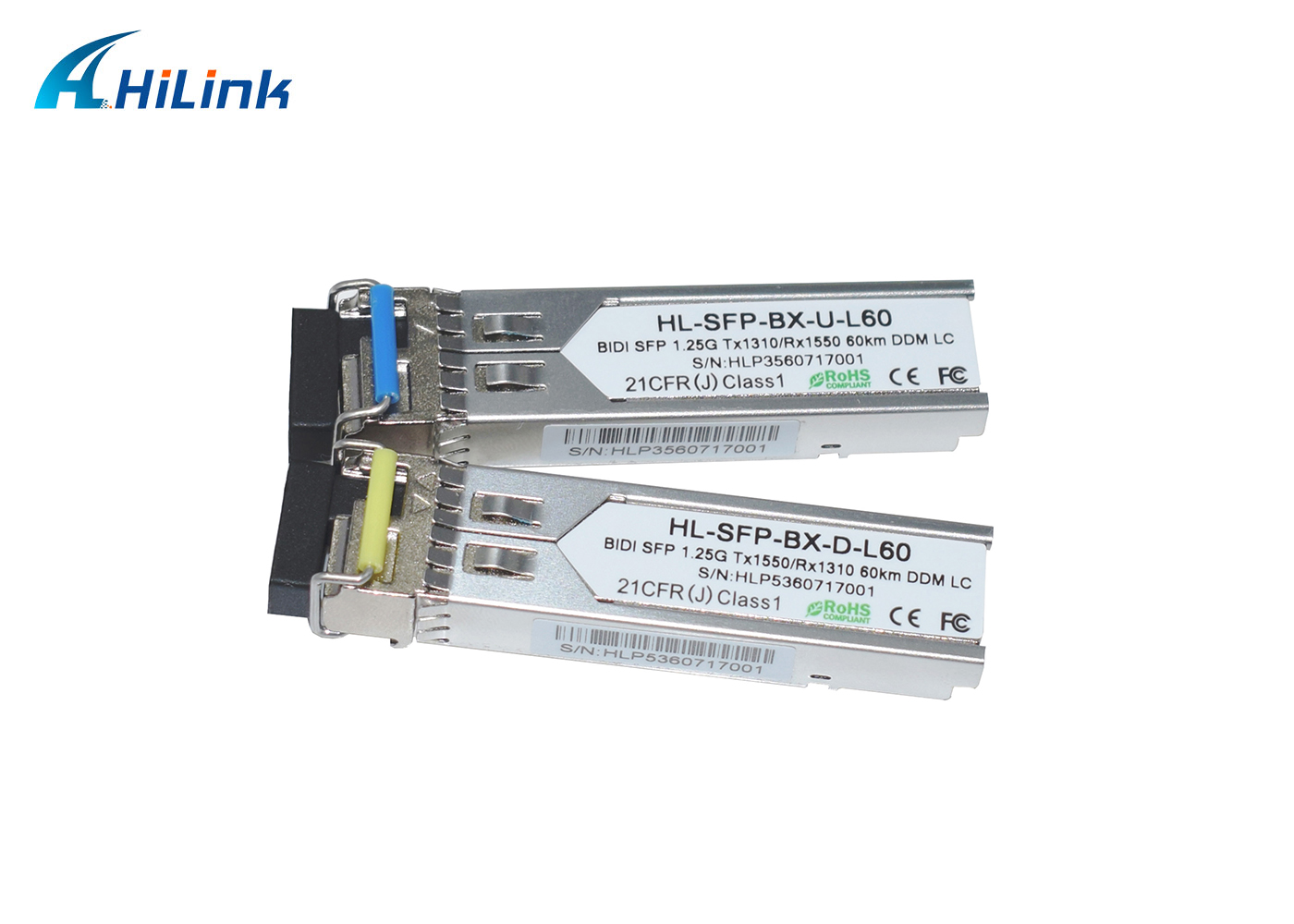

1.25G BIDI SFP 60KM

Share

60KM reach with Optional specification , 1.25G single fiber WDM 60KM

Wavelengths :

  1.   34/43 : Tx1310nm/Rx1490nm ; Tx1490nm/Rx1310nm

  2.   35/53 : Tx1310nm/Rx1550nm ; Tx1550nm/Rx1310nm

  3.   45/54 : Tx1490nm/Rx1550nm ; Tx1550nm/Rx1490nm


  1. Connectors :

  1.   LC/UPC

  2.   SC/UPC


Product description

Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).

They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.


PRODUCT FEATURES :

  • Single SC/LC receptacle optical interface compliant

  • Hot-pluggable SFP footprint

  • 1310nm DFB laser transmitter ; 1550nm DFB laser transmitter

  • 1310nm DFB laser transmitter;1490nm DFB laser transmitter

  • 1490nm DFB laser transmitter;1550nm DFB laser transmitter

  • RoHS compliant and Lead Free

  • Up to 60km on 9/125um SMF

  • Metal enclosure for lower EMI

  • Single 3.3V power supply

  • Low power dissipation <600mW

  • Commercial operating temperature range: 0°C to 70°C



APPLICATIONS :

  • Gigabit Ethernet

  • 1.06 Gb/s Fibre Channel
