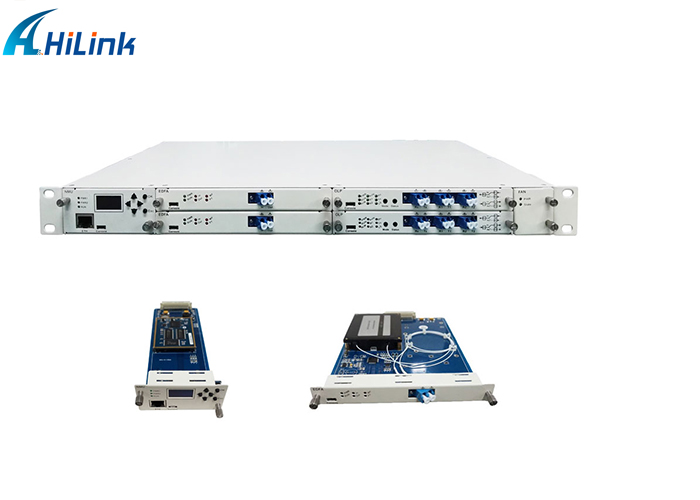

1U Rack Mount 100g Erbium doped fiber amplifier card

Share

1U Rack Mount Erbium doped fiber amplifier card has high stable output, high gain flatness and high reliability. The system’s flatness and noise can achieve the best optimization by the gain flattening filters of professional design. The system is convenient to regulation and display, reliable, intelligent by using high stable and high precision MPU.

Product description

Description

An Erbium Doped Fiber Amplifier (EDFA) is a type of fiber optic amplifier that is used to amplify the power of optical signals transmitted over fiber optic cables. It is commonly used in telecommunications systems to boost the signal strength of data transmitted over long distances.


A 1U rack mounts EDFA card is a compact and lightweight EDFA module that can be mounted in a 1U rack space. 1U is a standard unit of measurement for rack-mounted equipment, with 1U equal to 1.75 inches (44.45 mm) in height. Rack-mounted equipment is designed to be installed in a rack or cabinet specifically designed to hold and organize such equipment.

A 100G EDFA card is a high-capacity EDFA that is capable of amplifying optical signals with a data rate of up to 100 Gbps. It is typically used in high-speed networking and communication applications, such as data centers and backbone networks.


1U rack mount 100G EDFA cards are an important component of modern telecommunications systems, as they allow for the amplification of high-speed data transmitted over long distances using fiber optic cables.

Applications

C-band 40/80CH DWDM

Other optical systems

Product features

Low-noise high flatness design

Pluggable Dispersion Compensation 20~100km

Adjustable output power

High precision ATC keep system stableoperation

Precision AGC / APC circuit keeps the output

Power stability

Card design highly integrated, space-saving cabinet

Expansion is very convenient

Strict accordance with Bellcore GR-1312-CORE requirement for design

Performance index

Parameters

Unit

Symbol

Min

Typ

Max

Operating   Wavelength

nm

λc

1528

-----

1564

Saturate Output   Power

dBm

Po

-----

-----

20

Input Power

dBm

Pi

-35

-----

6

Gain1

dB

G

-----

20

33

DCM IL

dB

IL

3

-----

13

Noise Figure

dB

NF

-----

4.5

6

Power/Gain   Stability

dB

ΔPo

-----

±0.05

±0.2

Input Isolation

dB

ISOi

30

-----

-----

Output Isolation

dB

ISOo

30

-----

-----

Flatness

dB

GF

-----

1

-----

Return loss

dB

RL

-----

-----

-45

PDG

dB

PDG

-----

-----

0.3

PMD

ps

PMD

-----

-----

0.5

Consumption

W

P

-----

-----

15
