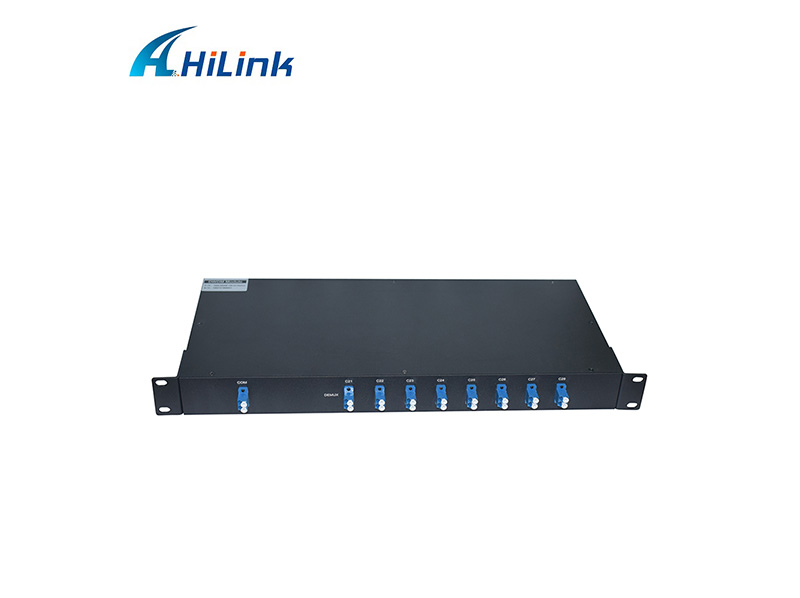

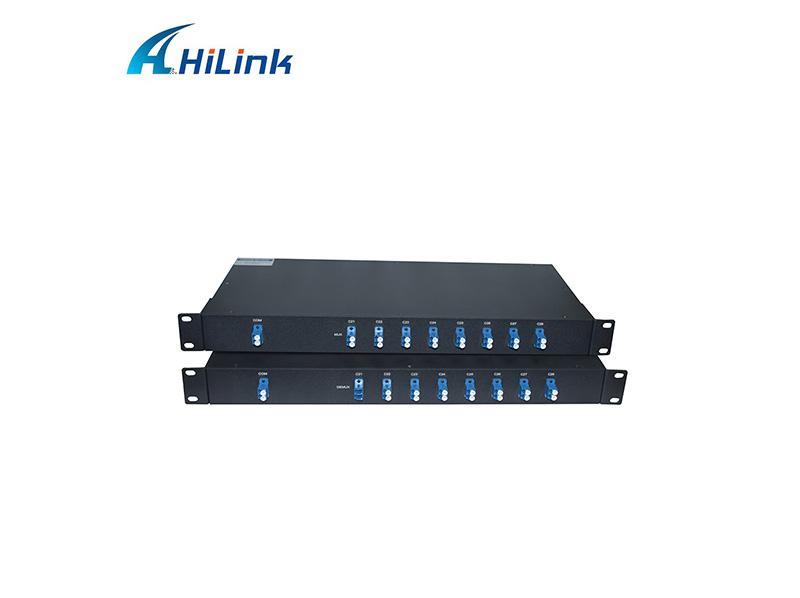

DWDM Mux Demux Module Rack mounted

Share

 Hilink DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package.

 DWDM Mux/Demux ITU Wavelength provides the ability to consolidate customers' services over a single connection, by voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.

Product description

 DWDM  MUX DEMUX Geneal Features

  • The DWDM with both a multiplexer and demultiplexer in unit

  • Easy to install, requires no configuration

  • Environmentally friendly product, completely passive, no power and no cooling required for operation!

  • Standalone, no other equipment required

  • To be used in 2 fiber strand and simplex strand

  • Can be connected to any fiber type

  • Low insertion loss - high isolation

  • Disassembles easily for cleaning

  • Fully Universal, bidirectional operation on any port

  • Fully transparent at all data rates and protocols

  • High reliability

  • Telcordia/Bellcore GR-1209 and GR-1221 qualified

  • Accepts any data rate and any protocol on any port up to 10 Gbps, also 40 Gbps (DPSK, DQPSK) and 100 Gbps (DP-QPSK)

  • Optional 1310nm window can be seamlessly integrated


Applications:
Channel Add/Drop
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV System


Compliance:
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
ITU-T G.694.1
RoHS

1xN DWDM Mux/Demux Module


Parameters
Channel Space (GHz)100200
Channel Number1*41*81*161*41*81*16
Center Wavelength (nm)ITU Grid
Center Wavelength Accuracy (nm)± 0.05± 0.1
Channel Passband (@-0.5dB) (nm)0.220.5
Fiber TypeSMF-28e with 900um loose tube or customer specified
IL (dB)1.42.53.81.72.93.1
Passband Ripple (dB)0.350.40.50.350.40.5
Isolation (dB)Adjacent Channel2528
Non-Adjacent Channel40
PDL (dB)0.2
PMD (ps)0.1
RL (dB)45
Directivity (dB)50
Maximum Optical Power (mw)500
Operating Temperature (°C)-20~70
Storage Temperature (°C)-40~85
BOX Package (mm)100*80*10 or 140*115*18
LGX Package1U,2U
19'' Rack mount Package1U

The 100GHZ 0.8nm DWDM Wavelength



DWDM Channels 100G

Central Wavelength(nm)

Frequency (THZ)

CH60

1529.55

196.0

CH59

1530.33

195.9

CH58

1531.12

195.8

CH57

1531.90

195.7

CH56

1532.68

195.6

CH55

1533.47

195.5

CH54

1534.25

195.4

CH53

1535.04

195.3

CH52

1535.82

195.2

....

....


CH37

1547.72

193.7

CH36

1548.51

193.6

CH35

1549.32

193.5

CH34

1550.12

193.4

CH33

1550.92

193.3

CH32

1551.72

193.2

CH31

1552.52

193.1

CH30

1553.33

193.0

CH29

1554.13

192.9

CH28

1554.94

192.8

CH27

1555.75

192.7

CH26

1556.55

192.6

CH25

1557.36

192.5

CH24

1558.17

192.4

CH23

1558.98

192.3

CH22

1559.79

192.2

CH21

1560.61

192.1

CH20

1561.42

192.0



Order Information:

HL



Channel Spacing



Channel Number



Configuration



1st Channel



Fiber Type



Fiber Length

Connector


Hilink

1=100GHz

2=200GHZ



4=4-Channel

8=8-Channel

16=16-Channel

32=32-Channel



M=Mux

D=Demux



21=1560.61nm

22=1559.79nm

23=1558.98nm…



1=Bare fiber

2=900um Jacket

1=1 Meter

2=2 Meter



0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC
